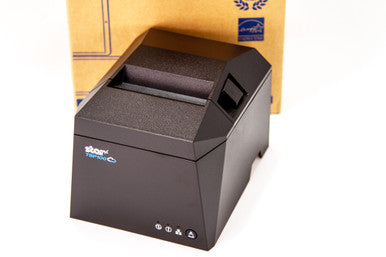

TSP143IVUE provides a more compact and sleek design, with added features like USB/LAN Dual Interface and CloudPRNT. The innovative design boasts a 20% smaller footprint, an internal power supply, and “drop-in and print” paper loading. This printer has straightforward installation, offered with AOA, Android Open Accessory (the first in the series to do so). AOA technology gives the printer full communication with your Android device while keeping it powered. The Star TSP143IVUE is Cloud Ready. It can connect to any cloud application that supports Star’s CloudPRNT technology and allows the TSP143IVUE to connect to Star Micronics Cloud Services for device monitoring, custom-designed coupons, and other services. Features - TSP143IVUE Compact and Modern Design About 20% smaller than the TSP143III, the TSP143IVUE can be wall mounted vertically or placed on a desktop AOA technology Technology that gives the printer the ability to communicate with and power Android devices
Dual Interface USB/LAN

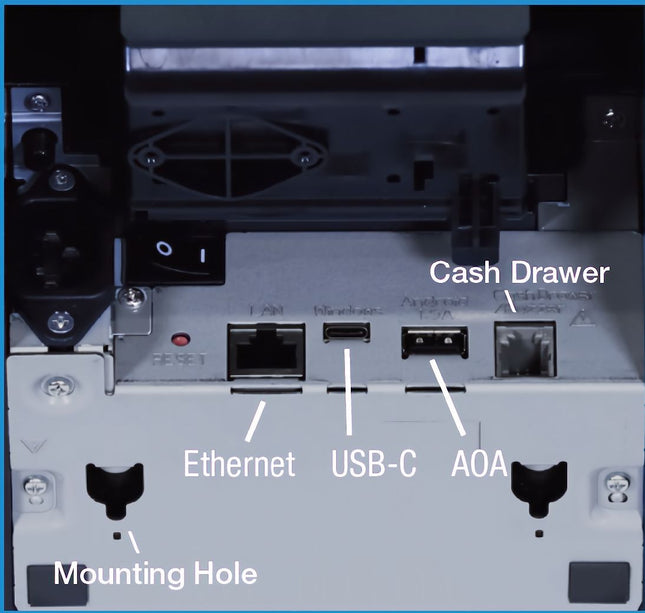

Ultra connected with LAN + USB (USB-C and USB-A) Star Cloud Ready Connect to any cloud application that supports Star’s CloudPRNT technology and also allows the TSP143IVUE to connect to Star Micronics Cloud Services for device monitoring, custom designed coupons, and many other services Compatible with Previous Versions Easily swap out your previous TSP100s with the new TSP143IVUE Printer Method Direct Line Thermal Print Speed 250 mm/sec Printer Case Color White or Grey Models Available Auto-Cutter Print Resolution 203 dpi (8 dots per mm) No. of Columns Star Mode = 48 Font Size 12 x 24 Character Set ANK 95, 32 Int 128 Graphic plus Chinese, Japanese, Korean, Taiwanese International Code Pages Star Mode=48 Bar Codes Extended barcode functionality - 9 versions / PDF 417, Maxicode Option Line Spacing
3 mm or 4 mm or programmable Paper Width 80mm standard, 58mm with paper guide Paper Thickness 0.049 ~ 0.085 mm Paper Roll Diameter Up to 83 mm Paper Loading "Drop-In & Print" Paper Out Sensor Yes Maximum Print Width 80mm paper = 72mm, 58mm paper = 50.8mm Top Margin 11 mm default Auto Cutter Guillotine (Partial Cut Only) Cover Open Sensor Yes Logo Store Capacity 512KB Internal Printer Memory Journal Capability Available through Starmicronicscloud.com Drivers Available Windows 10, Windows 8.1, Windows® XP 32 Bit, Vista 32/64 Bit, Windows 7 32/64 Bit, Server 2008 32/64 Bit, XP Embedded, POSReady2009, OPOS™, JavaPOS™ (Windows/Mac/Linux), USB Vendor Clss, CUPS (Mac/Linux), Mac, Mac OS X, Linux™, StarPRNT SDK (iOS/Android/Windows Desktop/UWP), StarXpand SDK (React Native), Star WebPRNT Brower (Android), Star PassPRNT (iOS/Android/UWP) Digitally Signed (WHQL) Yes Connectivity AOA (Android Open Accessory / Dual USB/LAN (USB-C and USB-A) Emulation Modes Star Graphics Mode/StarPRNT Peripheral Drive Circuit 2 circuits, (24V max. 1A), 1 compulsion input Power Consumption Average 1.6 Amp. Printing, 0.1 Amp. Standby [Approx. 43W while printing; up to 53 W with a 1.5 A device connected. Approx 3.5 W in Standby;up to 13 W with a 1.5A device connected] Operating Temperature 5oC to 45oC Operating Humidity 10% - 90% RH (without condensation) Storage Temperature Temperature: -20oC to 60oC Storage Humidity 10% - 90% RH Dimensions 140 X 123 X 169 (w x h x d)mm Weight 1.3kg Safety and Regulatory Standards UL, C-UL, TuV, FCC, VCCI, EN55022 {This is one part of FCC testing probably do not need to list it}, CE Reliability MCBF 60 Million Lines Print Head 100km Auto Cutter Reliability 2 Million Cuts
Complete the TSP143 receipt-printer setup
