Star Micronics TSP143IVUE Thermal Receipt Printer, USB, Ethernet, Gray

Description

TSP143IVUE provides a more compact and sleek design, with added features like USB/LAN Dual Interface and CloudPRNT. The innovative design boasts a 20% smaller footprint, an internal power supply, and “drop-in and print” paper loading. This printer has straightforward installation, offered with AOA, Android Open Accessory (the first in the series to do so). AOA technology gives the printer full communication with your Android device while keeping it powered. The Star TSP143IVUE is Cloud Ready. It can connect to any cloud application that supports Star’s CloudPRNT technology and allows the TSP143IVUE to connect to Star Micronics Cloud Services for device monitoring, custom-designed coupons, and other services.

Features - TSP143IVUE

Compact and Modern Design About 20% smaller than the TSP143III, the TSP143IVUE can be wall mounted vertically or placed on a desktop
AOA technology Technology that gives the printer the ability to communicate with and power Android devices

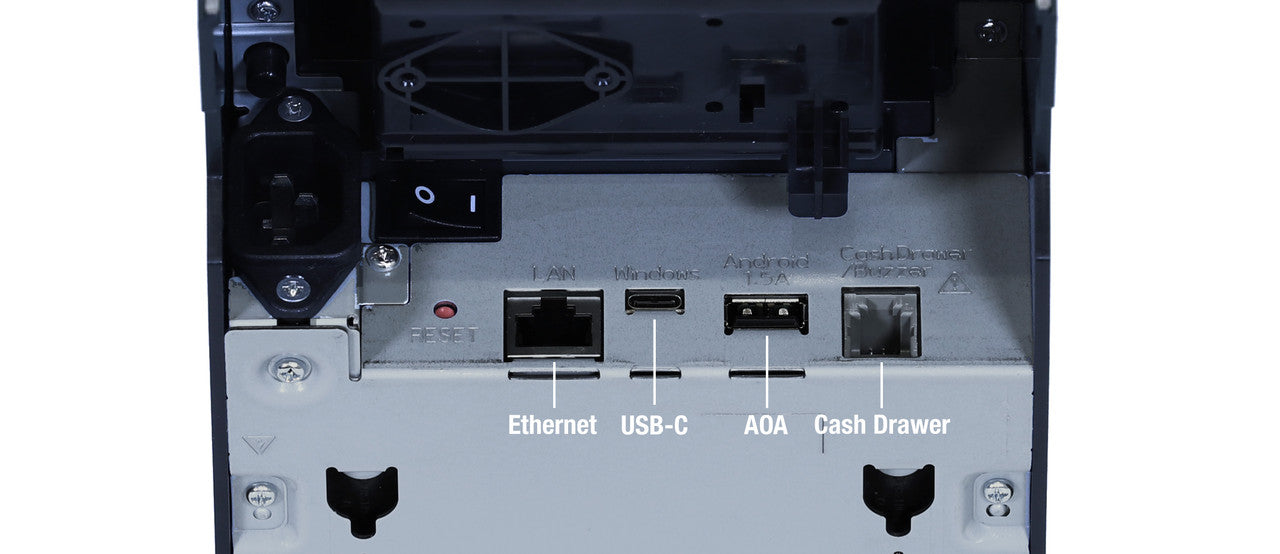

Dual Interface USB/LAN
Ultra connected with LAN + USB (USB-C and USB-A)
Star Cloud Ready Connect to any cloud application that supports Star’s CloudPRNT technology and also allows the TSP143IVUE to connect to Star Micronics Cloud Services for device monitoring, custom designed coupons, and many other services
Compatible with Previous Versions Easily swap out your previous TSP100s with the new TSP143IVUE

Printer Method Direct Line Thermal
Print Speed 250 mm/sec
Printer Case Color White or Grey
Models Available

Auto-Cutter
Print Resolution 203 dpi (8 dots per mm)
No. of Columns Star Mode = 48
Font Size 12 x 24
Character Set

ANK 95, 32 Int 128 Graphic plus Chinese, Japanese, Korean, Taiwanese

International Code Pages

Star Mode=48

Bar Codes Extended barcode functionality - 9 versions / PDF 417, Maxicode Option
Line Spacing 3 mm or 4 mm or programmable

Paper Width 80mm standard, 58mm with paper guide
Paper Thickness 0.049 ~ 0.085 mm
Paper Roll Diameter Up to 83 mm
Paper Loading

"Drop-In & Print"
Paper Out Sensor

Yes
Maximum Print Width 80mm paper = 72mm, 58mm paper = 50.8mm
Top Margin 11 mm default
Auto Cutter Guillotine (Partial Cut Only)
Cover Open Sensor Yes
Logo Store Capacity 512KB Internal Printer Memory
Journal Capability Available through Starmicronicscloud.com
Drivers Available Windows 10, Windows 8.1, Windows® XP 32 Bit, Vista 32/64 Bit, Windows 7 32/64 Bit, Server 2008 32/64 Bit, XP Embedded, POSReady2009, OPOS™, JavaPOS™ (Windows/Mac/Linux), USB Vendor Clss, CUPS (Mac/Linux), Mac, Mac OS X, Linux™, StarPRNT SDK (iOS/Android/Windows Desktop/UWP), StarXpand SDK (React Native), Star WebPRNT Brower (Android), Star PassPRNT (iOS/Android/UWP)
Digitally Signed (WHQL) Yes
Connectivity AOA (Android Open Accessory / Dual USB/LAN (USB-C and USB-A)
Emulation Modes Star Graphics Mode/StarPRNT
Peripheral Drive Circuit 2 circuits, (24V max. 1A), 1 compulsion input
Power Consumption Average 1.6 Amp. Printing, 0.1 Amp. Standby [Approx. 43W while printing; up to 53 W with a 1.5 A device connected. Approx 3.5 W in Standby;up to 13 W with a 1.5A device connected]
Operating Temperature 5oC to 45oC
Operating Humidity 10% - 90% RH (without condensation)
Storage Temperature Temperature: -20oC to 60oC
Storage Humidity 10% - 90% RH
Dimensions 140 X 123 X 169 (w x h x d)mm
Weight 1.3kg
Safety and Regulatory Standards UL, C-UL, TuV, FCC, VCCI, EN55022 {This is one part of FCC testing probably do not need to list it}, CE
Reliability MCBF 60 Million Lines
Print Head 100km
Auto Cutter Reliability 2 Million Cuts

Read more

Star Micronics TSP143IVUE Thermal Receipt Printer, USB, Ethernet, Gray

Product form

SKU: 39473010

Check Compatibility Before Ordering

For POS supplies and hardware, confirm model numbers, dimensions, connections, and required part numbers in the listing. Contact RH Now if you need help matching an item.

TSP143IVUE provides a more compact and sleek design, with added features like USB/LAN Dual Interface and CloudPRNT. The innovative design... Read more

$349.99

Out of stock
