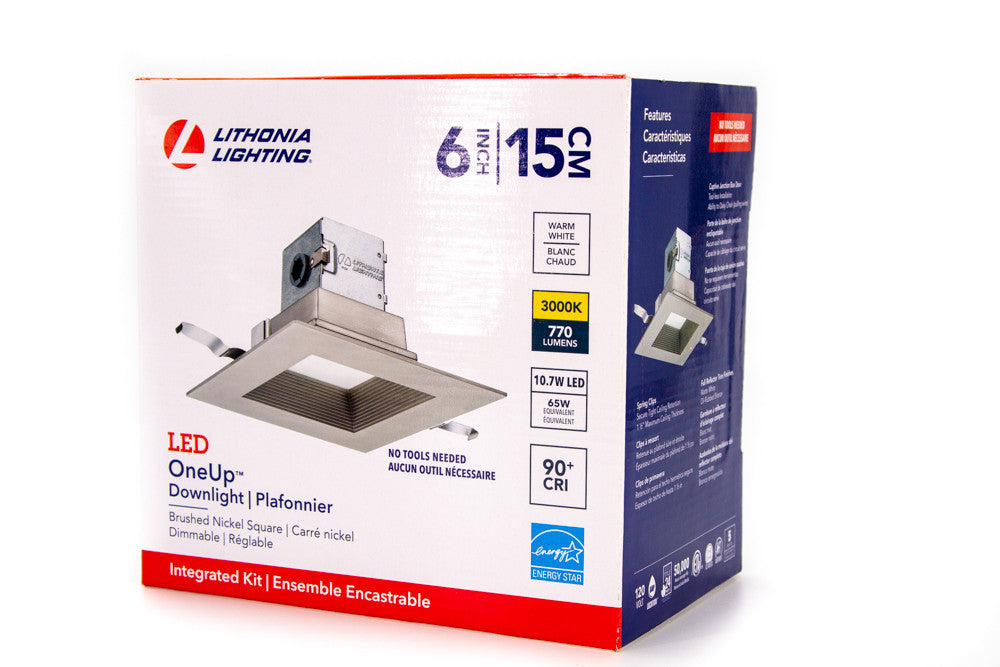

Lithonia OneUp™ 6-inch Square Direct-Wire LED Downlight
Lithonia OneUp Direct-Wire LED Downlight
Lithonia OneUp direct-wire downlights feature a unique 'canless' design. These all-in-one LED fixtures include an integrated junction box for direct wiring, require no tools (other than a hole saw for your ceiling cutout) and take less than 1/3 of the time to install. The secure trim has two side-mounted spring clips for easy installation in plaster, sheet rock, or plywood ceilings.
SPECIFICATIONS
| Size | 6 IN |
| Shape | Square |
| Light Source | LED - Static |
| Lumens | 770 LM |
| CCT / LED Color | 3000 K |
| CRI | 90 |
| Product Type | Downlight |
| Compliance Listing | CA Title 24, ENERGY STAR®, JA8 |
| Environmental Listing | Damp Location |
| Regulatory Listing | ETL |
| Dimming Protocol | Electronic Low Voltage, Forward Phase, Reverse Phase, Triac |
| Fixture Wattage | 10 |
| Voltage Rating | 120 |
| Trim Style | Baffle |
| Color | Brushed Nickel Square |
| Mounting Type | Recessed |
| Series | 6JBK |
FEATURES & SPECIFICATIONS
INTENDED USE — The OneUp™ recessed direct-wire LED downlight includes integrated junction box,
trim, pre-installed non-metallic bushings and 3-port push wire quick connectors in one package. The
OneUp is the most economical means to create a well lit environment with exceptional energy efficiency
and near zero maintenance.

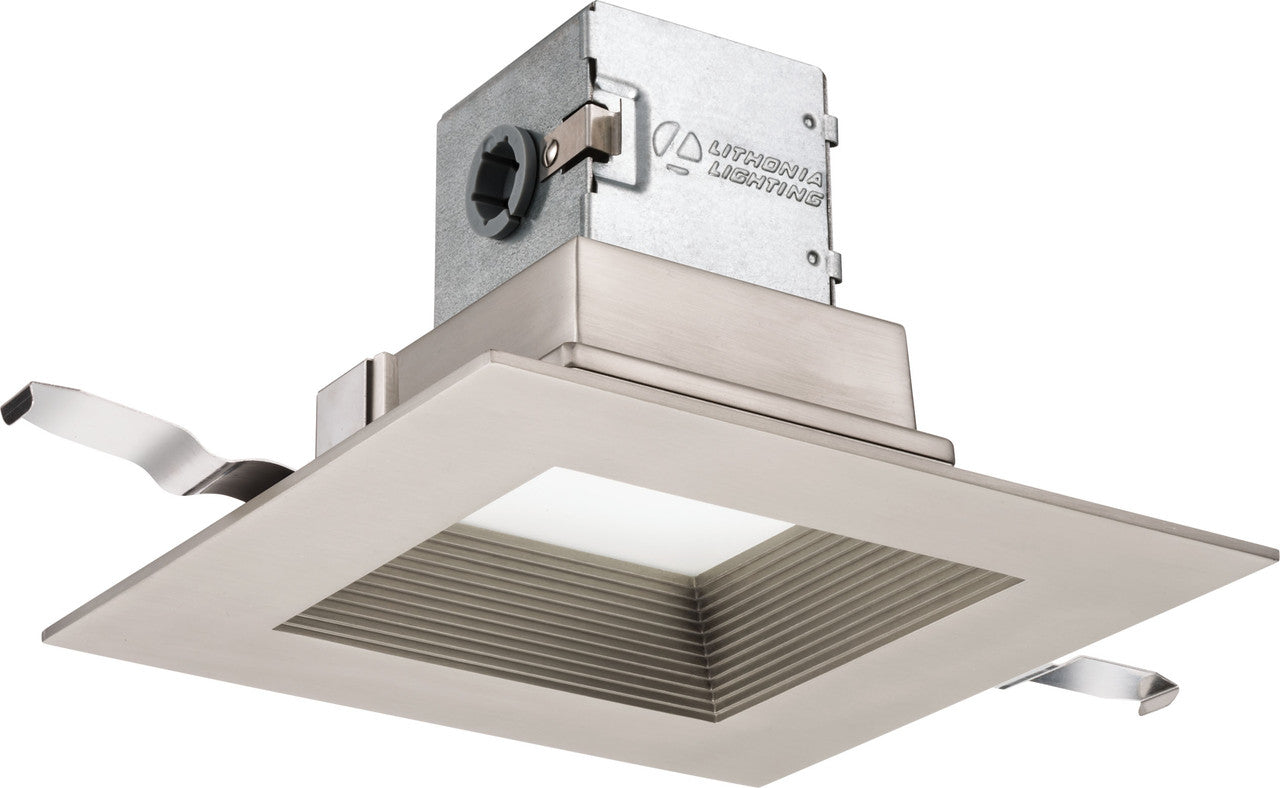

CONSTRUCTION — Aluminum die cast, square baffle trim. Integrated galvanized steel junction box
with captive door for easy access. Suitable for daisy chaining (pulling wires). Available in 3000K color
temperature LEDs.
OPTICS — Square baffle recesses optical system into the ceiling to prevent glare and provide a
traditional look. Diffused lens provides even light distribution for general illumination, equivalent to
65W incandescent flood lamp. Wide flood beam angle at >90°. CRI >90. Maintains at least 70% light
output for 50,000 hours.
INSTALLATION — Tool-less installation. Secure trim retention with two side-mounted spring clips
for easy installation in plaster, sheet rock, or plywood ceilings. The integrated junction box - with
pre-installed non-metallic bushing - allows non-metallic cable to be fed through without the hassle
of knockouts. The captive junction box door provides easy access to pre-installed 3-port push wire
quick connectors for straight-forward wiring. Rated for Type IC installations. Maximum of 4 No. 12AWG
through branch circuit conductor suitable for 90°C permitted in box. Ground wire provided.
ELECTRICAL SYSTEM — LED module with high-efficiency on board driver. Dimming down to 10%. For
compatible dimmers, refer to: Compatible dimmers chart.
Actual wattage may differ by +/-5% when operating at 120V +/-10%.
LISTINGS — ETL certified to US and Canadian safety standards. Can be used to comply with California
Title 24 Part6 High Efficacy LED Light Source Requirements. WSEC ASTEM E283 for Air-Tight rated with
gasket or caulking between fixture trim and ceiling. ENERGY STAR® certified. Wet location listed*. Indoor
damp location only for items in Brushed Nickel finish.
Specifications
Aperture: 4-1/2" (112.0)
Overlap Trim: 7-1/4" (185.0)
Height: 4-5/8" (118.7)
Ceiling Opening: 6-1/2" (165)
Min Ceiling Thickness: 1/2" (12.7)
Max Ceiling Thickness: 1-1/2" (38.1)
